جزئیات محصول:
|

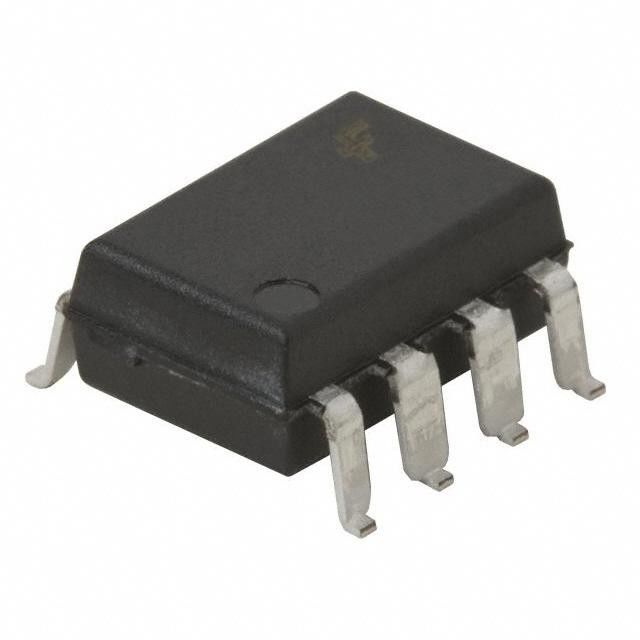

| شماره قطعه: | 6N137SD | سازنده: | نیمه هادی Fairchild/ON |
|---|---|---|---|
| شرح: | کلکتور OPN 2.5KV OPTOISO 8SMD | دسته بندی: | Optoisolators - خروجی منطقی |
| خانواده: | Optoisolators - خروجی منطقی |
| Part Status | Obsolete |
|---|---|
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 10kV/µs (Typ) |
| Input Type | DC |
| Output Type | Open Collector |
| Current - Output / Channel | 50mA |
| Data Rate | 10Mbps |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Rise / Fall Time (Typ) | 50ns, 12ns |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Current - DC Forward (If) (Max) | 50mA |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-SMD |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
