جزئیات محصول:
|

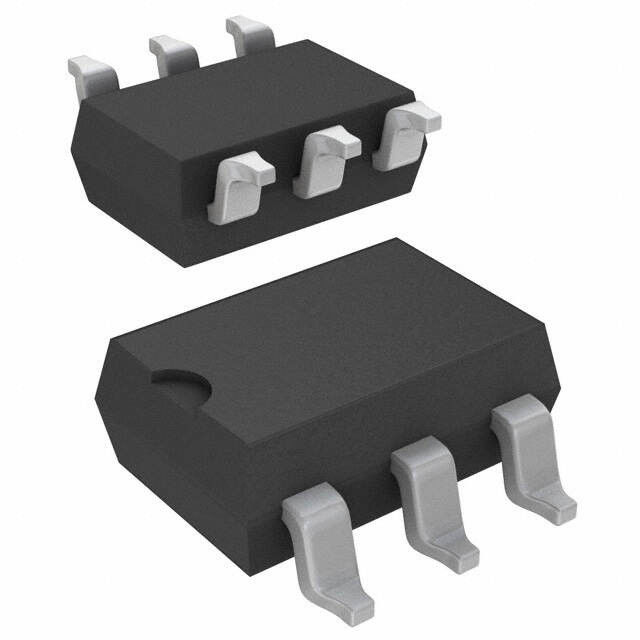

| شماره قطعه: | PS9331L-E3-AX | سازنده: | CEL |
|---|---|---|---|
| شرح: | OPTOISO 5KV GATE DRIVER 6SDIP GW | دسته بندی: | ایزولاتور - درایور دروازه |
| خانواده: | ایزولاتور - درایور دروازه |
| Part Status | Active |
|---|---|
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 50kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 175ns, 175ns |
| Pulse Width Distortion (Max) | 75ns |
| Rise / Fall Time (Typ) | 40ns, 40ns |
| Current - Output High, Low | 2A, 2A |
| Current - Peak Output | 2.5A |
| Voltage - Forward (Vf) (Typ) | 1.56V |
| Current - DC Forward (If) (Max) | 25mA |
| Voltage - Supply | 15 V ~ 30 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.268", 6.80mm Width) |
| Supplier Device Package | 6-SDIP Gull Wing |
| Approvals | CSA, SEMKO, UL |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
